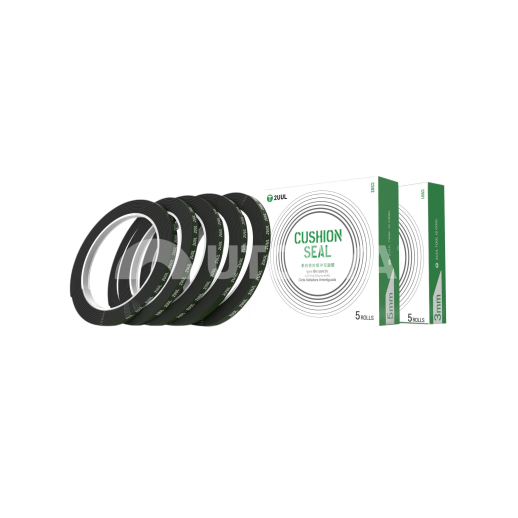

Pack of 5 2UUL CS01 Adhesive Rolls

Description

The pack of 5 2UUL CS01 adhesive rolls is a professional solution designed for demanding technicians in smartphone and tablet repair. Unlike standard adhesives, "Cushion Seal" technology offers a dual function: robust perimeter fixation and a sealing barrier against dust and liquid splashes. This 3mm format is ideal for thin frames and modern OLED screen borders where application space is extremely limited.

Manufactured from a closed-cell structure polymer, this adhesive possesses exceptional compression properties. It allows for the absorption of micro-imperfections in the frame or slight deformations, thus ensuring a perfect fit for the back glass or screen assembly. Its chemical composition is designed to withstand internal temperature variations of the device (up to 80°C peak), preventing premature glass detachment due to heat dissipated by the battery or processor.

The use of this 2UUL adhesive guarantees an "original-like" (OEM-like) finish. Its total opacity ensures a "Light-Shield" function, preventing any light leakage from the LCD backlight or internal sensors to the outside of the device, a common defect when using generic adhesives that are too thin or transparent.

Technical Specifications

• Manufacturer reference: 2UUL-CS01
• Material: High-density polymer foam (PE) with acrylic adhesive
• Compatibility: Universal (Smartphone, Tablet, Connected objects)
• Dimensions: Width 3mm / Length 10 metres per roll
• Weight: Approx. 15g per roll
• Thermal Resistance: -20°C to +100°C / RoHS Certified
• Packaging: Pack of 5 rolls (50 metres total)

Workshop Advice & Usage

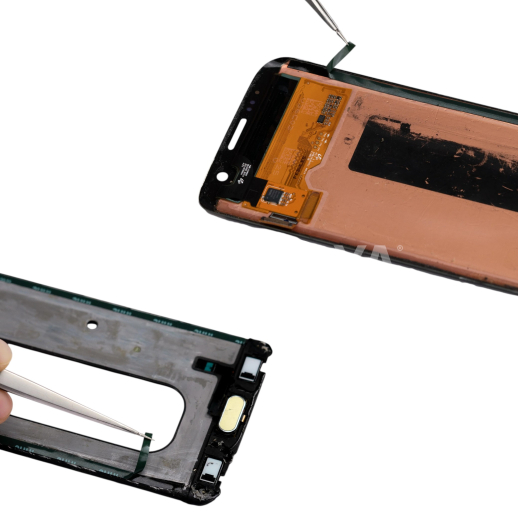

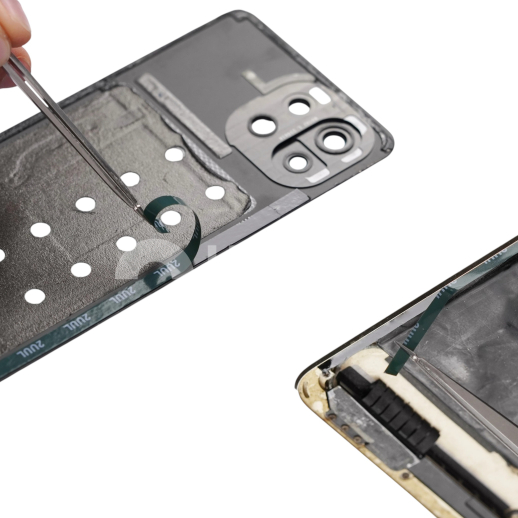

For maximum adhesion, it is imperative to thoroughly degrease the contact surfaces with isopropyl alcohol (99%) before application. After applying the part (screen or back glass), we recommend uniform pressing using clamps or a screen press for at least 15 minutes. This "cold" curing time allows the Cushion Seal technology to adapt perfectly to the contours and ensure optimal sealing.
