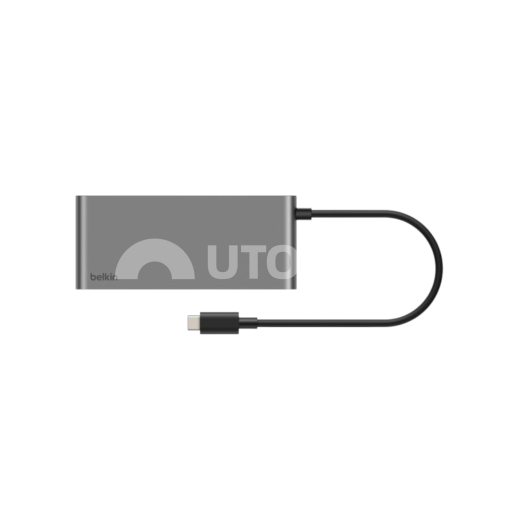

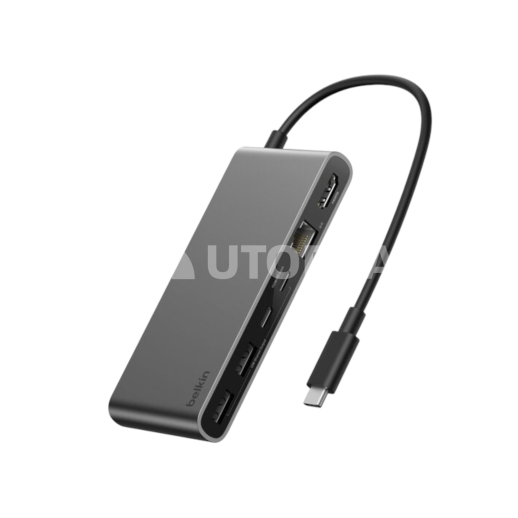

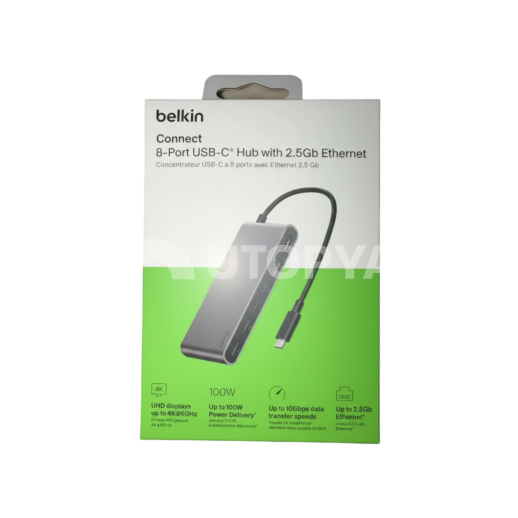

Belkin Connect 8-in-1 USB-C Hub - 2.5 Gbps Ethernet - 4K 60Hz - 100W PD

Description

The Belkin Connect 8-in-1 USB-C Hub is a portable workstation designed for demanding professionals who require cutting-edge network and video connectivity. This device allows you to transform a single USB-C or Thunderbolt port into a complete interface, centralising data streams, high-definition display, and fast charging. Its compact design and construction from post-consumer recycled (PCR) plastic make it a tool that is both high-performing and respectful of current environmental commitments.

Technically, this hub stands out with the integration of a 2.5 Gbps Ethernet controller, far surpassing standard Gigabit benchmarks to meet the needs of creatives managing large files on a local network. The HDMI output supports 4K at a 60Hz refresh rate, ensuring optimal image fluidity for video editing or high-precision presentations. Data connectivity is provided by USB 3.2 Gen 2 ports offering transfers up to 10 Gbps, which is double that of conventional USB-C hubs.

Power management is handled by a USB-C Power Delivery 3.0 port accepting up to 100W input. The internal circuitry benefits from a multi-layer safety system protecting against overvoltage and short circuits, ensuring the total integrity of connected hardware. SD and MicroSD 3.0 card readers complete the interface, facilitating the rapid offloading of media for photographers and videographers.

Technical Specifications

• Material: USB 3.2 Gen 2 / Recycled plastic (PCR) space grey finish
• Compatibility: Universal (USB-C, Thunderbolt 3/4/5) - Windows, macOS, ChromeOS
• Dimensions: 120 mm x 50 mm x 16 mm
• Weight: Not specified by the manufacturer
• Power Supply: USB-C Power Delivery 3.0 up to 100W (85W effective for the host)
• Video Output: HDMI 2.0 (4K @60Hz)
• Network: 2.5 Gigabit RJ45 Ethernet
• Data Ports: 2x USB-A (10 Gbps), 1x USB-C (10 Gbps)

Workshop Advice & Usage

To fully exploit the 2.5 Gbps Ethernet throughput, ensure you use Category 6 (Cat6) or higher network cables. For video, the 60Hz frequency in 4K requires the host computer's USB-C port to support the DisplayPort 1.4 protocol; on older machines limited to DP 1.2, the frequency will be capped at 30Hz. We recommend using a 100W wall charger to ensure stable charging power if several power-hungry peripherals (external hard drives) are connected simultaneously.
