iScrews DOTTORPOD Screw Organizer with Disassembly Diagram for iPhone

Description

The iScrews screw organizer developed by Italian engineering DottorPod is an essential workshop tool for the maintenance and precision reconditioning of the Apple iPhone range. Designed specifically for professional repairers and micro-electronics technicians, this tray definitively solves the problem of managing micro-screws of asymmetrical lengths, threads, and diameters. During the complete disassembly of a smartphone, swapping a screw can generate a pressure bridge on the internal PCB circuits, puncture hidden multi-layer tracks, or permanently break the chassis anchor thread ("Long Screw Damage").

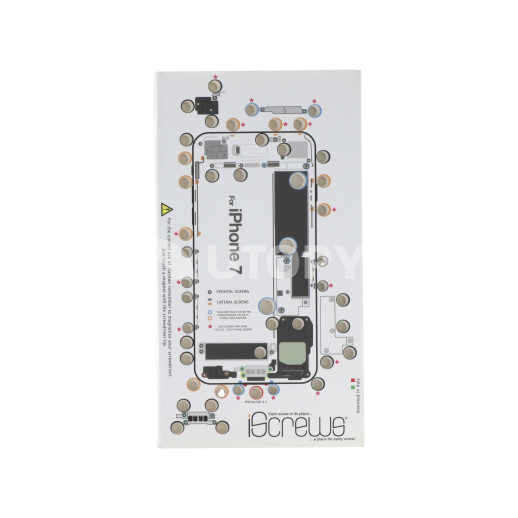

The structure of the iScrews is based on the superposition of a high-fidelity technical diagram printed in colour and a top matrix made of transparent moulded plastic. This casing has individual cells positioned homothetically to the actual layout of the components inside the device (screen ribbons, battery support, TrueDepth camera, charging connector). The bottom of each compartment features a mechanical stabilization zone that firmly holds the isolated screw, thus eliminating the risk of accidental dispersion by compressed air projection, oscillating tool vibrations, or false movements on the workbench.

Thanks to its thin and compact profile, this organizer fits perfectly under the visual field of the microscope or in the immediate vicinity of the ESD soldering mat. Instant visual identification of screw threads allows for significantly accelerating the critical reassembly phase of the devices. The technician gains productivity and secures their after-sales return rate by ensuring that no internal fixing part has been forgotten or incorrectly positioned.

Technical Specifications

• Manufacturer reference: iScrews Series By DottorPod
• Technology / Material: Rigid support composite and top layer in high-transparency thermo-moulded polymer
• Compatibility: Specific to each Apple iPhone smartphone generation (select the corresponding model)
• Dimensions: Format optimized for micro-mechanical workstation (approximately 170 mm x 120 mm)
• Weight: 100 g
• Power / Standards: Passive mechanical solution without electrical power / Dielectric insulating coating
• Marking type: Technical colour printing of internal modules (Motherboard, Battery, Taptic Engine, Shielding screens)
• Retention system: Cylindrical geometry cells preventing component tipping and rolling

Workshop Advice & Usage

For quick and stress-free removal during intensive reassembly phases, use a precision screwdriver equipped with a magnetically calibrated tip. This will allow the screw to be lifted instantly from its cell without altering its head. Avoid applying aggressive solvents such as acetone directly to the transparent surface so as not to cloud the plastic or erase the underlying diagram. Simple periodic cleaning using a microfibre cloth slightly impregnated with 99% isopropyl alcohol is sufficient to remove residues of skin grease and soldering flux.
