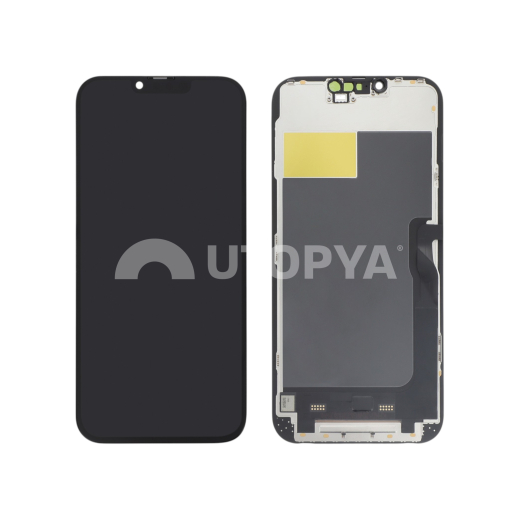

iPhone 13 Pro Max Complete Screen (LTPS) PRIME: Embedded Intelligence & Plug & Play Architecture

The LTPS PRIME complete screen for iPhone 13 Pro Max represents a major technological breakthrough for repair professionals. Beyond its excellent display capabilities, this component integrates embedded intelligence (Diagnostic-Ready). It is natively designed to communicate with Apple's diagnostic protocols, transforming the most dreaded intervention into a standardised, ultra-fast, and secure procedure.

The PRIME Advantage: Diagnostic-Ready and Zero Micro-Soldering

PRIME technology features a latest-generation integrated circuit (IC), factory-soldered and programmed to emulate the logical architecture of an authentic chip. This technical solution redefines your workshop's efficiency:

• Full "Plug & Play" Architecture: No more risks associated with IC Transplant. The integrated microcontroller eliminates 100% of micro-soldering operations, protecting flex cables from any tearing or thermal damage.
• iOS 18+ Validation ("Used" Status): In total harmony with new iOS protocols, this screen passes the Apple Repair Assistant. The device validates the part by assigning it the recognised "Used" status, thus avoiding the dreaded "Unknown Part" alert message.
• Native True Tone Restoration: Calibration by Apple servers instantly and automatically reactivates the True Tone functionality. You no longer need to manually copy codes via an external programmer (such as JCID or Qianli).
• Maximum Operational Fluidity: A complex repair that required a Level 3 technician (over an hour of work) is transformed into a standard 10-minute operation. You free up skilled labour time and drastically reduce your after-sales return rate.

Hardware Specifications: LTPS 120Hz Technology

The PRIME range makes no compromises on the visual experience. Although the original panel is OLED technology, this version integrates a high-quality LTPS (Low Temperature PolySilicon) type LCD panel, offering the best technical and economic alternative on the market:

• Superior Display and Fine Detail: LTPS technology ensures exceptional pixel density, guaranteeing a sharp display, deep blacks, and colour fidelity that pushes the limits of traditional LCD.
• Native 120Hz Refresh Rate: The screen guarantees optimal touch responsiveness and display fluidity, in perfect alignment with the iPhone 13 Pro Max's native specifications.
• Energy Efficiency: Low-temperature polycrystalline silicon allows for excellent energy management, avoiding overconsumption and preserving battery life.

Technical Transparency & Installation Precautions

At UTOPYA, we prioritise absolute technical transparency for you and your customers:

• Brightness Sensor: On this specific model (OLED to LTPS LCD conversion), auto-brightness is not supported. The thickness and structure of the LCD panel do not allow the ambient light sensor to function correctly. Brightness must be adjusted manually by the user.
• Biometric Integrity: All other essential features, including full compatibility with the Face ID module, are fully preserved when transferring the original flex cable.
• Note on the iOS system: PRIME diagnostic bypass technology is an active engineering feat under current versions of iOS. As component history remains managed by Apple, we remind you that the behaviour of any "Plug & Play" screen on the market may evolve based on the manufacturer's future update policies.
