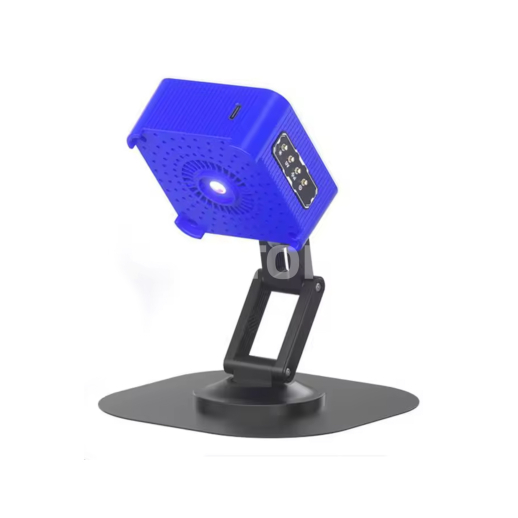

Mechanic FUL-4 Cooling Fan and UV Curing Lamp 2-in-1

Description

The Mechanic FUL-4 is an essential multifunctional desktop accessory for optimizing micro-soldering processes. This compact tool addresses two critical needs of the technician: immediate extraction of toxic flux fumes during soldering and ultra-fast curing of protective varnishes (Solder Mask) after track reconstruction. Its ergonomic design and compact size allow it to be placed directly under the microscope or in close proximity to the work area without hindering precision handling.

On the ventilation side, the FUL-4 features a high-performance motor capable of reaching 10,000 revolutions per minute. This power not only helps to remove harmful vapors from the operator's face, but also accelerates the cooling of the motherboard after a hot air operation, thus limiting thermal stress on surrounding components. On the optical side, it incorporates a high-intensity UV LED array. A simple activation allows the solder mask to cure in record time (3 to 5 seconds), instantly securing jumpers and isolating repaired tracks in a durable manner.

The device is powered by a universal USB-C port, making it compatible with all modern charging stations or USB ports on digital microscopes. Its robust chassis effectively dissipates internal heat from the LEDs, ensuring increased longevity of the optical components. The Mechanic FUL-4 is the ideal tool for technicians looking to save time on finishing steps while improving the safety and cleanliness of their work environment.

Technical Specifications

• Manufacturer Reference: MECHANIC FUL-4
• Technology/Material: High-power UV LED/Fan High-Speed 10k RPM
• Dual Function: Cooling & Extraction / UV Curing
• Curing Time: 3 to 10 seconds (Flash Speed)
• Power Supply: 5V via USB-C port
• Rotation Speed: 10,000 rpm
• Chassis: Heat and shock resistant material

Workshop Tips & Usage

For optimal drying of your jumpers, apply a thin layer of Mechanic UV varnish, then place the FUL-4 about 1 or 2 cm from the area for 5 seconds. Remember to use the fan function immediately after soldering a BGA component or FPC connector: this helps to stabilize the solder joints more quickly and prevent heat from spreading to neighboring chips (such as the processor or memory). Warning: never look directly at the UV LEDs when in operation to protect your retina.
