MECHANIC MC75S-B3 Binocular Microscope

MECHANIC MC75S-B3 Binocular Microscope

Caractéristiques
  • Brand Mechanic Mechanic
  • Packaging N/A
  • Manufacturer Ref MC75S-B3
  • SKU MEC-MC75S-B3
  • EAN Code 3701344076900
  • Warranty N/A
$181.15

In stock

Delivered tomorrow before 13:00 by ordering before 18:00
Product Description

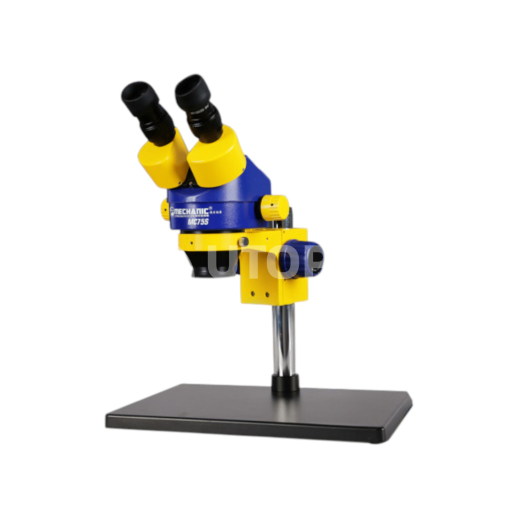

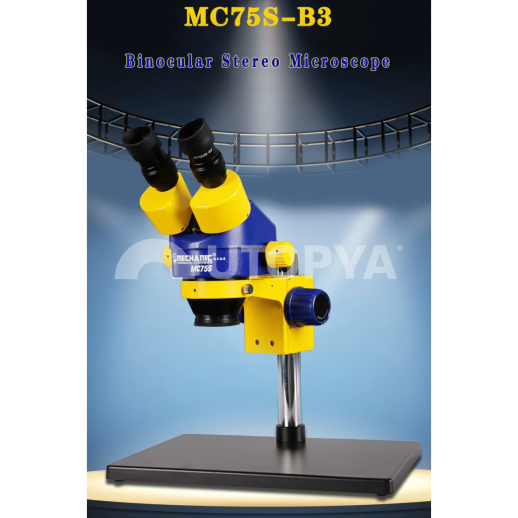

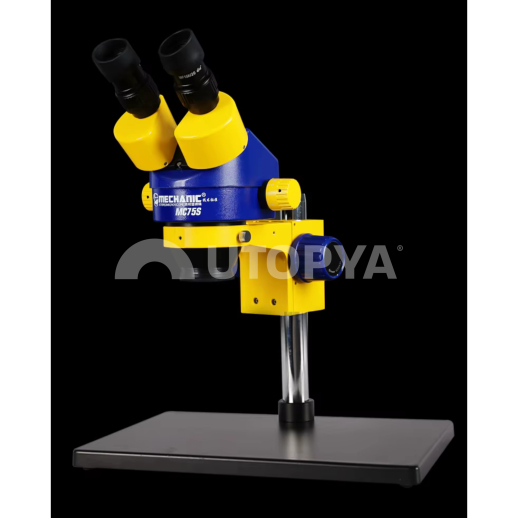

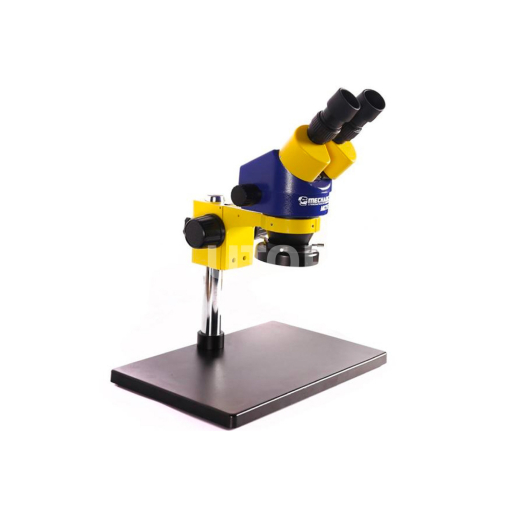

Stereo Binocular Microscope Mechanic MC75S-B3 - Zoom 7X-45X

Description

The Mechanic MC75S-B3 is a professional optical instrument designed to meet the specific needs of electronic maintenance technicians. This binocular microscope offers a high-definition continuous zoom system ranging from 7X to 45X, allowing detailed observation of microscopic components and complex solder joints on motherboards. Its stereo design provides a true depth perception, a crucial advantage for micro-soldering operations, track reconstruction, or resin removal under the microscope.

The MC75S-B3 model prioritizes image quality with faithful color rendering and crystal-clear sharpness across the entire field of view. Equipped with a B3 type base, it ensures excellent sample stability while providing a clear working area for diagnostic tools. Unlike trinocular models, this binocular version is optimized for technicians working exclusively at the eyepieces, ensuring maximum brightness and constant visual comfort during long-term interventions.

Technical Specifications

  • Reference: Mechanic MC75S-B3
  • Type: Stereo Binocular Microscope
  • Magnification Range: 7X - 45X (Continuous Zoom)
  • Eyepieces: Wide Field WF10X / 20mm
  • Optical Head: Inclined at 45° and rotatable at 360°
  • Objective: 0.7X - 4.5X
  • Support: Sturdy B3 metal base

Workshop Advice & Usage

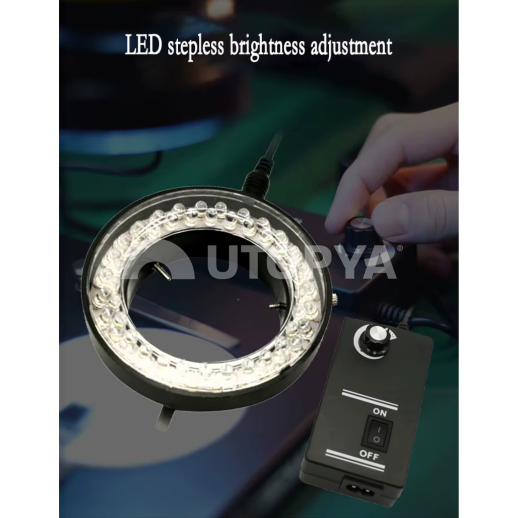

For intensive professional use, we recommend adding a Barlow protective lens (transparent or 0.5X) to prevent solder fumes and flux splashes from dulling the main microscope lens. The use of powerful annular LED lighting is essential to compensate for shadow areas during interventions under BGA components. Be sure to properly adjust the interpupillary distance and diopter of each eyepiece at the beginning of each session to minimize visual fatigue and ensure a perfectly fused three-dimensional image.

$181.15
$181.15

In stock

Delivered tomorrow before 13:00 by ordering before 18:00
