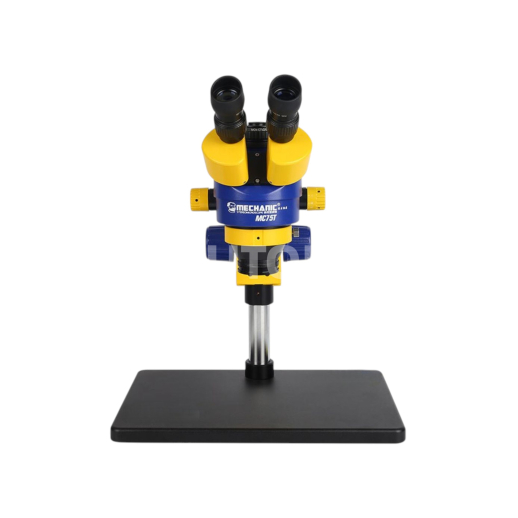

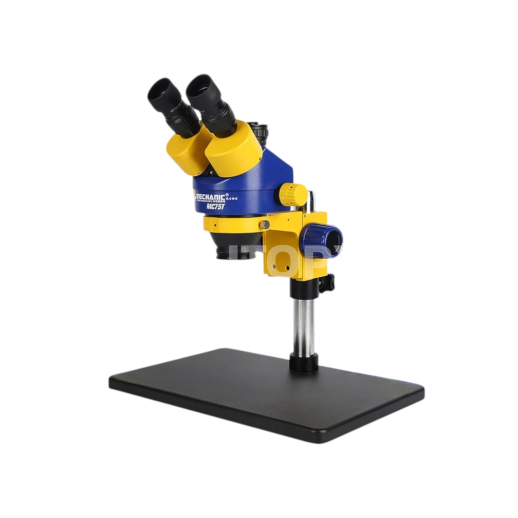

Stereo Trinocular Microscope Mechanic MC75T-B3 - Continuous Zoom 7X-45X

Description

The Mechanic MC75T-B3 is a professional-grade optical inspection instrument, essential for repair workshops specializing in high-precision micro-soldering. With its continuous zoom system ranging from 7X to 45X, it allows for viewing the finest details of printed circuits, facilitating the identification of micro-cracks, short circuits, or corrosion under IC chips. Its trinocular design provides the necessary flexibility to connect an HDMI or 4K camera, allowing the technician to work comfortably on screen or document their repairs for clients.

The MC75T-B3 model stands out for its optical clarity and faithful color reproduction, essential criteria for differentiating solder alloys and solder masks. The provided B3 base offers generous workspace and perfect stability, allowing for the manipulation of large motherboards of smartphones, tablets, or consoles without any hindrance. It is the benchmark investment for any repairer looking to elevate their level of expertise and perform complex interventions such as reballing or reconstructing microscopic tracks.

Technical Specifications

• Reference: Mechanic MC75T-B3 Trinocular
• Magnification: 7X to 45X (Continuous Zoom)
• Eyepieces: Wide field WF10X / 20mm
• Optical Head: Trinocular inclined at 45°, 360° rotatable
• Working Distance: Approximately 100mm (standard without additional lens)
• Base: High stability metal B3 support
• Video Output: Dedicated port for C-Mount adapter

Workshop Advice & Usage

The MC75T-B3 is a sturdy base for your micro-soldering setup. To protect your optics from flux fumes and tin splashes, we highly recommend the systematic installation of a transparent protection lens (Barlow 1X) or a 0.5X reduction lens that will double your working distance. High-intensity LED ring lighting is also essential to eliminate shadow areas under components. Remember to adjust the diopter setting on each eyepiece to compensate for any vision differences and ensure perfect sharpness during your working hours.
