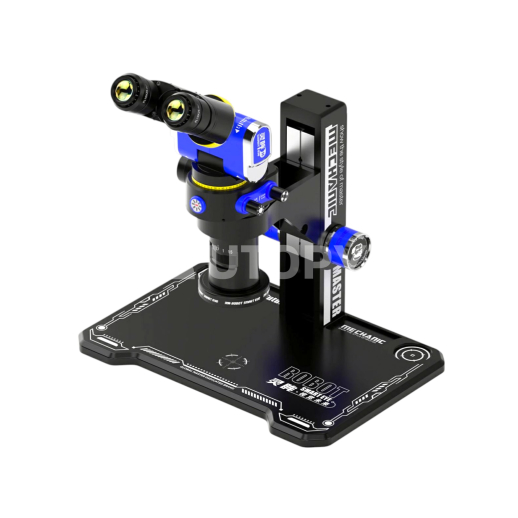

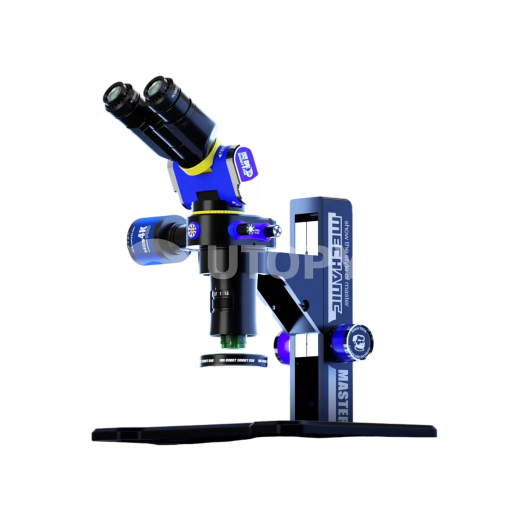

Trinocular Mechanic SE7045-TGSD Microscope - Parallel Light Optical System

Description

The Mechanic SE7045-TGSD is a high-tech trinocular stereo microscope designed for experts in micro-soldering and electronic refurbishment. Its main feature lies in the use of a parallel light optical system, a high-end technology that minimizes eye fatigue and eliminates image distortions common in standard models. This optical architecture ensures faithful relief rendering and exceptional clarity, essential for working on microscopic size SMD components (01005) or rebuilding tracks under the processor.

Equipped with a continuous zoom ranging from 0.7X to 4.5X, this microscope allows for a smooth transition between an overview of the motherboard and a detailed inspection of micro-soldering. Its "Simul-focal" trinocular port is a major asset for training or documentation: it allows connecting a high-definition camera while maintaining an active and clear binocular vision. The WF10X/22mm eyepieces offer a wide field of view and superior visual comfort, allowing the technician to work for several hours without eye strain.

The mechanical robustness of the SE7045-TGSD ensures perfect stability on the workbench. The focusing mechanism is smooth and precise, avoiding any shift during magnification changes. Its native working distance of 100mm provides the necessary space to handle soldering irons and hot air nozzles safely. Whether for diagnosing complex faults or making ultra-fine jumpers, this microscope offers the optical precision required for industrial-grade repairs.

Technical Specifications

• Manufacturer Reference: MECHANIC SE7045-TGSD
• Optical Technology: Parallel Light Path System
• Magnification: Continuous zoom 7X to 45X
• Eyepieces: Wide field WF10X / 22mm (High Eye-point)
• Head: Trinocular Simul-focal, inclined at 45°, rotatable at 360°
• Working Distance: 100 mm
• Interpupillary Adjustment: 54 mm - 76 mm
• Camera Port: C-Mount adapter included

Workshop Tips & Usage

Thanks to the parallel light system of the SE7045-TGSD, you benefit from a "flat" image without curvature effects on the edges. To protect your lenses from acidic solder fumes, we highly recommend installing a 0.5X Barlow protection lens. Not only will it double your working distance (to 165mm+), facilitating the passage of your tools, but it will also preserve the brilliance of your optics in the long term. Consider using a powerful annular LED lighting (such as 144 LED) to fully exploit the high resolution of this optical system.
