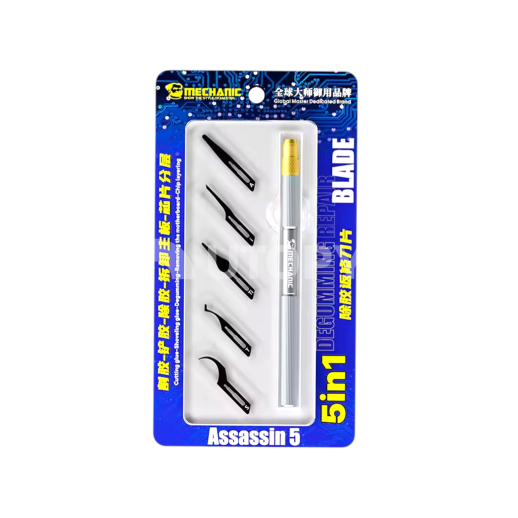

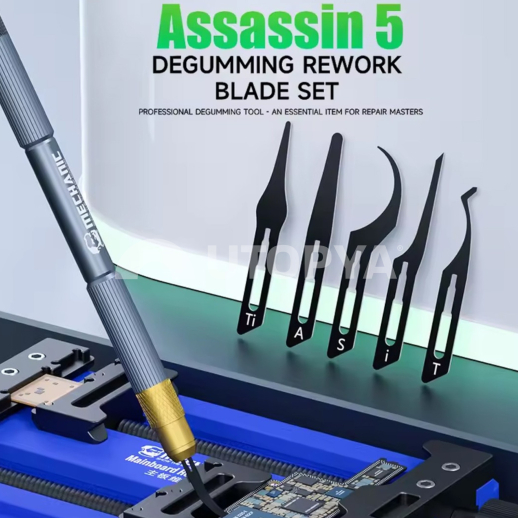

MECHANIC Assassin-5 - Professional Degumming and IC Blade Set

Technical Description

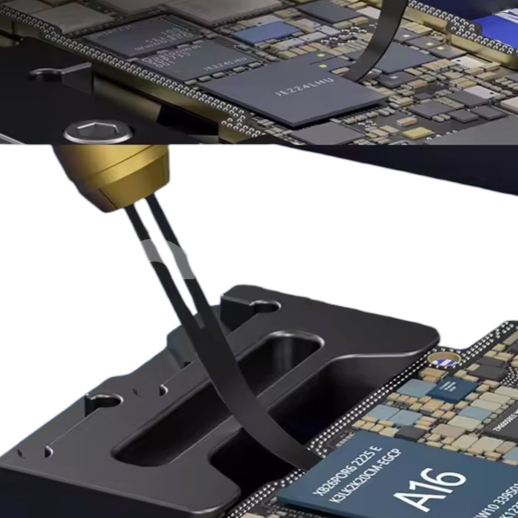

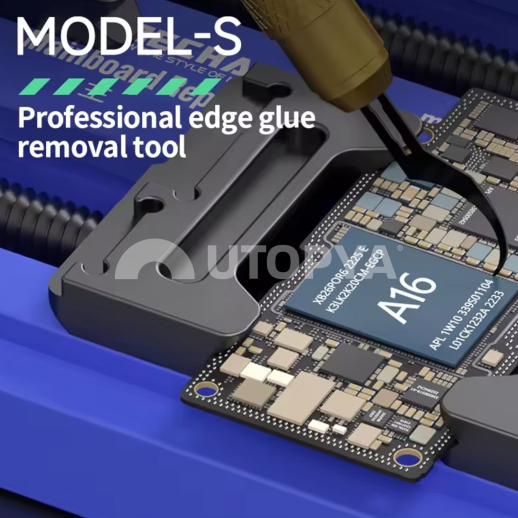

The MECHANIC Assassin-5 is the ultimate tool for micro-soldering experts. This "5-in-1" kit has been developed to solve the major challenge of removing hard glue (Underfill) surrounding CPU and NAND chips. Each blade features a specific curvature and bevel, manually polished to ensure a perfect glide under components without scratching the motherboard's protective varnish (solder mask).

The aluminium alloy handle offers an ultra-precise "pen-like" grip, essential during high-temperature cleaning operations. Whether removing black resin from iPhones or cleaning residual solder balls on a processor, the Assassin-5 ensures incomparable work precision.

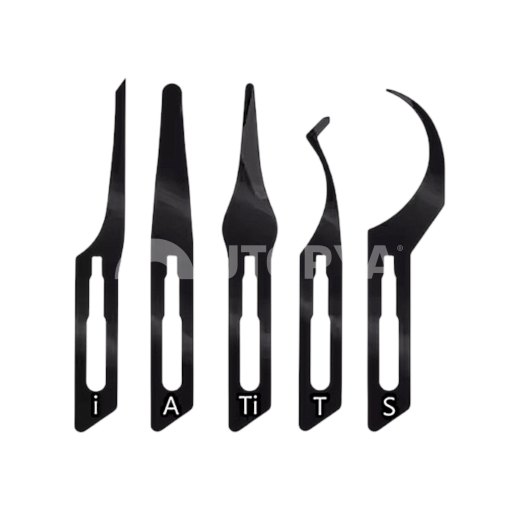

Details of the 5 Specialised Blades

• Side Cutting Blade: For cleanly cutting the glue around the perimeter of chips before desoldering.
• Pad Cleaning Blade: Wide and flat, ideal for smoothing residual solder on contact pads.
• Hook Blade: For delicately extracting glue residues in component-dense areas.
• Thin Separation Blade: Designed to insert under the chip during heating to facilitate lifting.
• Precision Scraping Blade: To remove microscopic impurities between rows of solder balls.

Technical Specifications

• Model: Assassin-5 (Professional Degumming Blade Set)
• Blade Material: Special hand-polished stainless steel
• Handle: Non-slip aluminium alloy with quick-tightening system
• Properties: Heat-resistant, anti-static, high hardness
• Thickness: Micrometric profile for work under a microscope
• Application: CPU, NAND, IC, epoxy resin removal and degumming

Benefits for the Technician

• Surgical Efficiency: The optimised shapes allow IC chip cleaning time to be halved.
• Track Safety: The mirror polishing of the blades reduces the risk of tearing pads from the motherboard.
• Durability: The hardened steel retains its edge even after multiple high-temperature cleaning sessions.
• Visual Comfort: Thin blades that do not obstruct the field of vision when using a binocular microscope.

Note: For optimal results, use these blades while the board is still hot or in conjunction with a special epoxy resin solvent.
