Stereo Trinocular Mechanic ROBOT Z4 Microscope - Continuous Zoom 6X-45X

Description

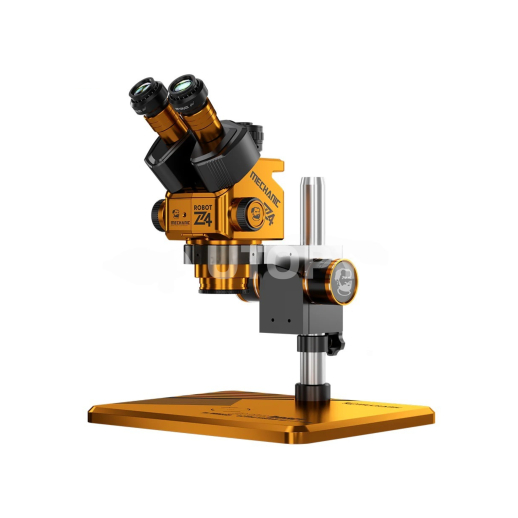

The Mechanic ROBOT Z4 is an intelligent optical inspection station designed for demanding repair environments where visual clarity must meet mechanical precision. With its continuous zoom system 6X-45X, it stands out as one of the most versatile microscopes in its category, capable of handling both quick diagnostics and surgical micro-soldering on complex multilayer circuits. Its trinocular head offers rare versatility: it allows technicians to work with a natural stereo vision while streaming video to an external monitor via a C-Mount camera.

The optical system of the Z4 ensures exemplary image stability and optimized depth of field. With its WF10X/22mm eyepieces, the field of view is widened, avoiding frequent repositioning of the motherboard under the lens. It is the preferred tool for technicians working on smartphones, gaming consoles, or graphics cards requiring meticulous inspection of solder balls (BGA) and microscopic traces. Its robust design ensures lasting and stable use, even under intensive use under the hot air flows of soldering stations.

Technical Specifications

• Reference: Mechanic ROBOT Z4 Trinocular
• Zoom Range: 0.6X - 4.5X (Ratio 1:7.5)
• Magnification: 6X - 45X (with original 10X eyepieces)
• Eyepieces: Wide field WF10X / 22mm
• Optical Head: Inclined at 45°, rotatable at 360°
• Video Output: Trinocular port compatible with CTV adapters

Workshop & Usage Advice

The precision of the Z4 optics is a major asset for track reconstruction work (jumpers). To optimize working distance and protect your lenses, we recommend using a 0.5X Barlow lens (not included) that will double your space under the microscope to manipulate your soldering iron more freely. Given the high optical resolution, make sure to use a powerful and adjustable LED ring light to eliminate shadows. Remember to adjust the diopter setting on each eyepiece to obtain a perfectly sharp image and avoid visual fatigue after several hours of use.
