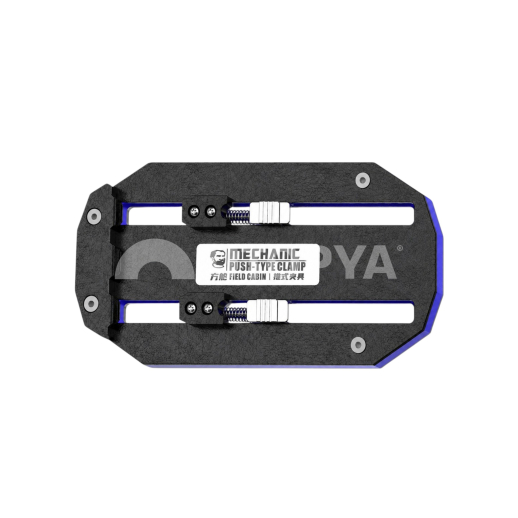

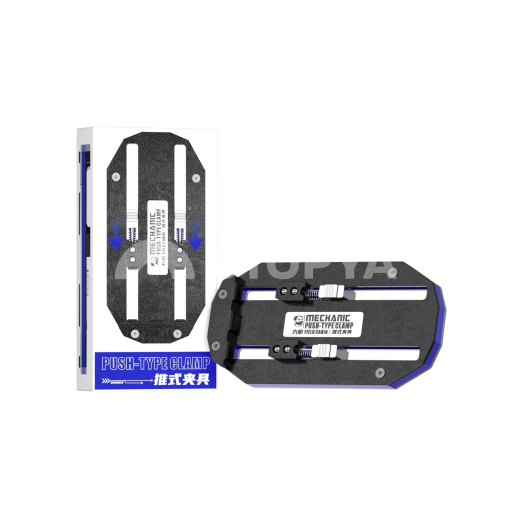

MECHANIC FIELD CABIN Universal Pressure Motherboard Repair Holder

Description

The MECHANIC FIELD CABIN repair holder is an industrial-grade workshop tool specifically developed for micro-soldering and smartphone motherboard repair laboratories. Designed to meet the high demands of B2B technicians, this jig allows for the secure immobilization of PCBs with complex geometries during intricate desoldering and reballing operations. Its heavy structure offers maximum stability under a microscope, guaranteeing professional repairers a working environment free from vibrations or unwanted shifts.

This model stands out for its use of a high-density nano-composite synthetic stone capable of tolerating direct exposure to hot air flow up to a critical temperature of 500 °C. Unlike classic steel holders that accumulate and diffuse heat to the entire printed circuit board, the synthetic stone thermally insulates the work area and prevents any deformation, delamination, or accidental desoldering of peripheral components. Its anchoring system relies on a patented pressure mechanism, equipped with a 76 mm quick-lock slide and concave jaws with asymmetrical grooves ensuring a firm grip, even on circuits with irregular shapes or varying thicknesses.

The overall ergonomics have been designed to streamline technical tasks in the workshop and maximize output. The base incorporates non-slip silicone pads that absorb shocks and stabilize the tool on the workbench. Access to components located on the top or bottom sides of the motherboard is never hindered by the frame thanks to the raised geometry of the contact points, which allows for residual glue cleaning (IC degumming) or jump-wire operations to be performed safely.

Technical Specifications

• Manufacturer reference: FIELD-CABIN (Modular Stackable Fixture)
• Technology / Material: High-performance nano-composite synthetic stone, anti-corrosion and anti-static (ESD) surface treatment
• Compatibility: Universal (iPhone motherboards, multi-layer boards such as Huawei/Samsung, IC chips, CPU, NAND, asymmetrical circuits)
• Dimensions: Locking slide travel: 76 mm
• Weight: Not specified
• Power / Standards: Passive mechanical heat dissipation / Thermal resistance up to 500 °C / ESD-Safe certification
• Locking mechanism: Industrial-grade fine adjustment knob with quick-lock pressure system (Push-Type)
• Jaw design: Concave profile with double rows of irregular teeth to counteract expansion stresses

Workshop Advice & Usage

To optimize the lifespan of the synthetic stone, it is strongly advised to regularly clean the concave jaws using 99% isopropyl alcohol (isopropanol) to remove solder flux residues and burnt glues that could alter the precision of the clamping. When installing a thin motherboard, use the pressure system gradually: excessive clamping applied to an area weakened by heat can lead to micro-cracks on the internal PCB tracks. Always ensure the holder is positioned on a flat and clean surface so that the silicone pads prevent any slipping under the hot air station nozzle.
