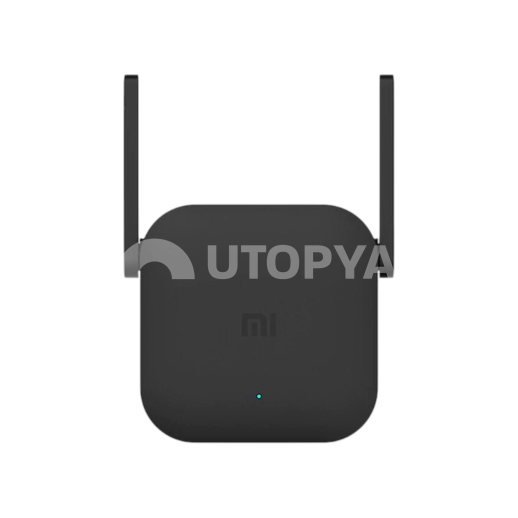

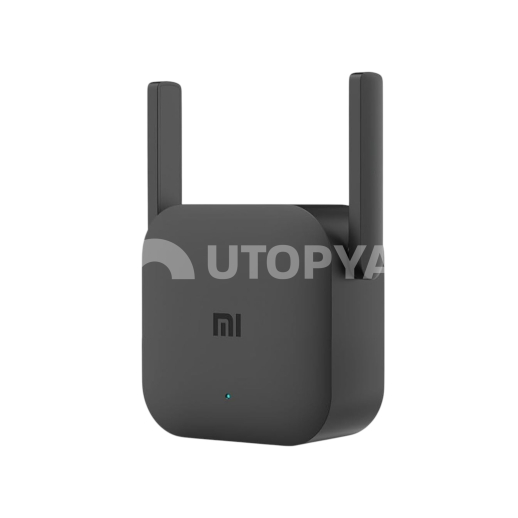

Mi Wi-Fi Range Extender Pro | 2.4 GHz N300 Wi-Fi Repeater

Description

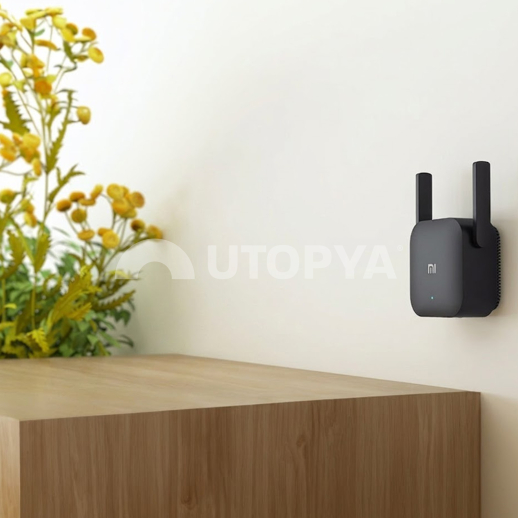

The Mi Wi-Fi Range Extender Pro (Xiaomi Wi-Fi Repeater Pro) is a compact signal booster designed to extend the coverage of home wireless networks and eliminate dead zones from the main router. Operating on the 2.4 GHz frequency band, it offers a theoretical speed of up to 300 Mbps, ideal for web browsing, smart home devices, and standard streaming. Its "wall-plug" design allows for a discreet installation directly into a power socket, without the clutter of extra cables.

Technically, this repeater stands out with its two high-performance external antennas that improve the reception sensitivity of the source signal. Thanks to 2x2 MIMO technology, it ensures more stable data transmission and better penetration through indoor obstacles. Its configuration is fully automated via the Xiaomi Home ecosystem, allowing for quick setup and simplified management of software updates (firmware) to ensure constant network security.

Although optimised for simplicity, the device integrates robust security protocols (WPA2-PSK) and can support a multitude of connected devices simultaneously. Its extremely low power consumption and passive thermal management make it a reliable solution for extending Wi-Fi to isolated rooms, a garage, or a terrace.

Technical Specifications

• Manufacturer Reference: Mi Wi-Fi Range Extender Pro (R03)
• Wireless Technology: Wi-Fi 4 (IEEE 802.11b/g/n)
• Frequency: 2.4 GHz only
• Maximum Speed: 300 Mbps
• Antennas: 2 x Adjustable external antennas
• Security: WPA-PSK / WPA2-PSK

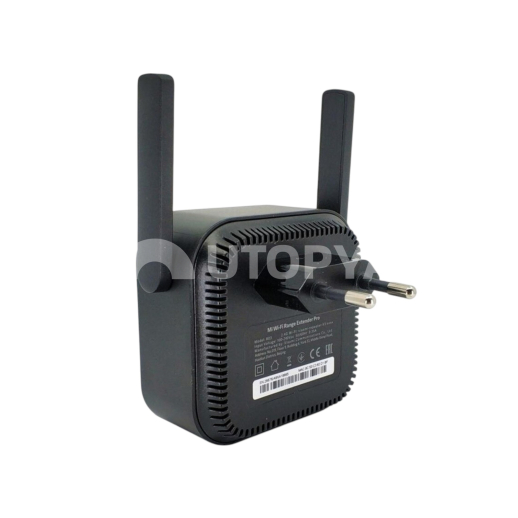

• Power Supply: Direct wall plug (100-240 V, 50/60 Hz, 0.3 A)
• Dimensions: 80 x 54 x 70 mm

Workshop Advice & Usage

For effective results, the Mi Wi-Fi Range Extender Pro should be placed in a location where it receives at least 2 signal bars (approximately -65 dBm) from the original router. If placed too far away, the speed will be unstable; if too close, the area extension will be negligible. Being limited to the 2.4 GHz band, this model is sensitive to interference (microwaves, Bluetooth, neighbouring networks). In case of synchronisation difficulties with the Xiaomi Home app, perform a physical "Reset" using a paperclip for 5 seconds until the orange LED flashes. Note that this repeater does not have an Ethernet port: it cannot, therefore, be used to connect a non-Wi-Fi device via a cable.
