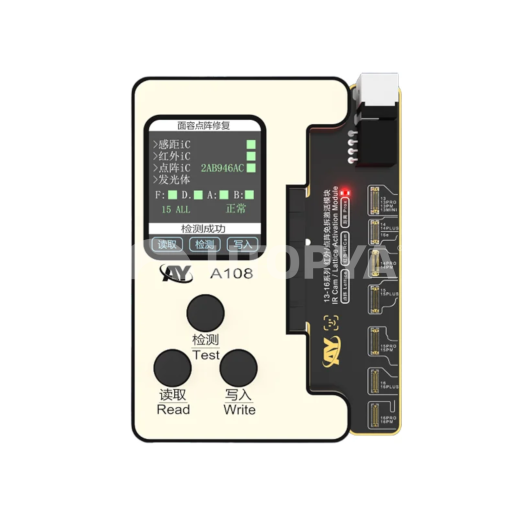

AY A108 Face ID Repair Tool - Connection Plate (iPhone 13-16)

Description

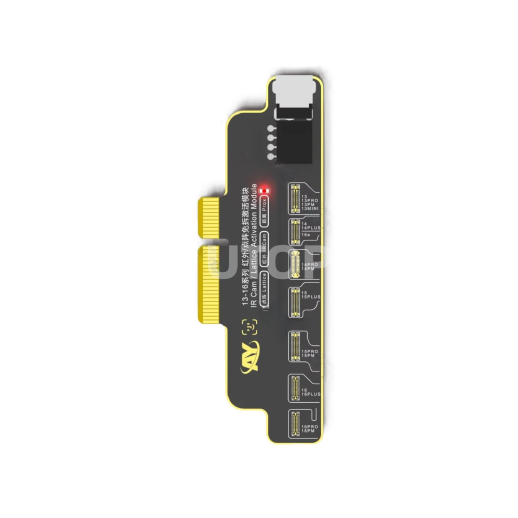

Professional adapter plate designed to securely and repeatably connect iPhone 13 to 16 to the AY A108 programmer during Face ID repair procedures. Used with specific Tag-On Flex cables for each model, it ensures a reliable physical connection, reduces mechanical stress on the flex cables, and standardizes the workflow at the workshop.

Technical Specifications

• Compatibility: iPhone 13 to 16 series (all variants) via dedicated cables (sold separately)
• Role: hardware interface linking the device to the AY A108 machine for Face ID restoration
• Guidance: model-specific silkscreened locations, positioning markers, and mechanical stops
• Indication: status LED for power/activity visualization
• Machine interface: dedicated side plug-in connector for the AY A108 slot
• Materials: workshop-grade PCB, high-reliability contacts, solvent-resistant finish
• Installation: direct placement on AY A108, no device modification required
• ESD recommendations: use on antistatic mat and wrist strap
• Requirements: requires AY A108 machine and corresponding Tag-On Flex cables
• NB: Programmer not included

Advantages

• Stable and secure connection to preserve the integrity of flex cables and connectors
• Workshop repeatability: clear markers for each model, reduced connection errors
• Time-saving in intervention: quick assembly/disassembly, standardized workflow
• Versatility: one plate covers iPhone 13 to 16 series via specific cables
• Reduction of indirect costs by limiting re-interventions and cable breakage

Applications

• Face ID repair procedures on iPhone 13 to 16 carried out with AY A108
• Specialized repair workshops and advanced service centers
• Interventions requiring quick and reliable service restoration while preserving original parts
