RELIFE TK-1 Ceramic Solder Scraper - High Precision Cleaning

Description

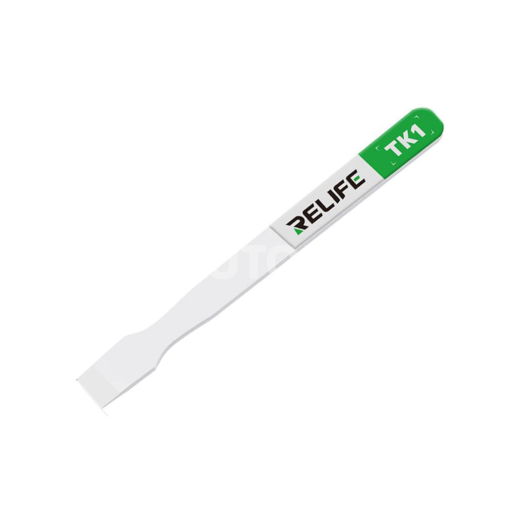

The RELIFE TK-1 scraper is an advanced tool designed for delicate cleaning operations on motherboards and integrated circuits. Equipped with a zirconia ceramic blade, this tool is specifically developed for technicians performing reballing or cleaning epoxy glue residues on CPUs and NAND memories. Unlike conventional metal tools, ceramic offers an ultra-smooth contact surface that allows for the removal of tin and impurities without risking damage to the sensitive copper traces of the printed circuit.

Technically, the ceramic blade has exceptional properties: it is completely non-conductive and anti-magnetic, eliminating any risk of accidental short-circuiting when working on boards with still charged capacitors. In addition, its extreme thermal resistance allows it to operate under the hot air flow of a soldering station without transferring heat to the handle and without the tin residues fusing with the blade. This thermal neutrality ensures a clean and quick cleaning of the solder pads.

The tool's ergonomics are ensured by an aerospace-grade aluminum handle, offering perfect balance and durability. The fixing system allows for a firm grip of the blade, avoiding any vibration during precision movements. Its inherent resistance to corrosion ensures that the tool will not oxidize when in contact with solder fluxes or chemical cleaning agents, thus extending its lifespan compared to standard scalpel blades.

Technical Specifications

• Manufacturer Reference: RELIFE TK-1
• Material: Zirconia Ceramic Blade/Aluminum Handle
• Compatibility: Microelectronics, IC Cleaning, Reballing, UV Glue Removal
• Dimensions: Length 135 mm (Handle + Blade)
• Weight: Approx. 25 g
• Thermal Resistance: Up to 1600°C
• Properties: Anti-static (ESD-Safe), Anti-magnetic, Non-conductive

Workshop Advice & Usage

Although the ceramic blade is extremely hard and resistant to wear, it is inherently brittle when subjected to lateral shocks or falls on hard surfaces. In the workshop, avoid using this scraper to lever rigid components. For optimal results on black glue residues (Underfill), heat the area between 150°C and 200°C before using the scraper: the blade will then effortlessly slide under the residues without ever scratching the protective varnish of the motherboard.
