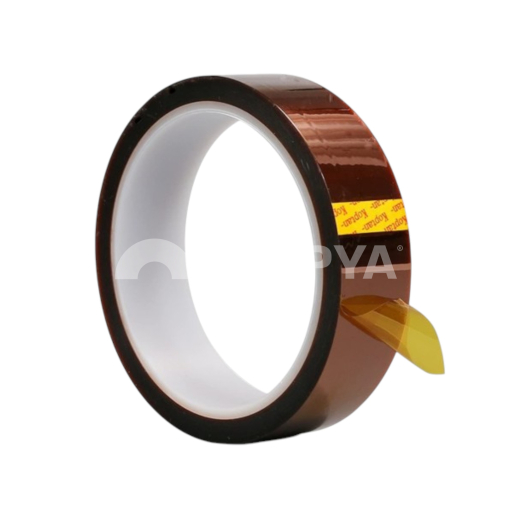

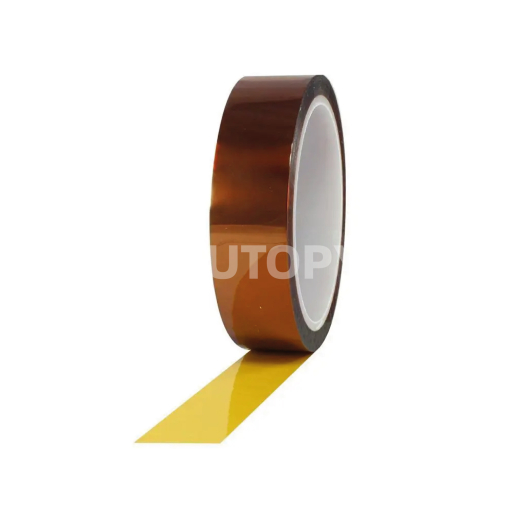

Kapton Polyimide Adhesive Tape 6mm (30m) - Specialized for Micro-Soldering and Insulation

Description

The 6mm polyimide tape is the ultimate precision tool for technicians specialized in micro-repair of smartphones and wearables. Its extremely narrow width allows for ultra-localized masking, essential when working on motherboards where components are spaced less than a millimeter apart. This tape serves as a high-performance thermal shield: it protects FPC connectors, passive components, and sensitive chips from the heat of the hot air nozzle, preventing any accidental melting or displacement of surrounding components.

In addition to its heat resistance capabilities (up to 300°C), this 6mm format is the standard for isolating wire jumpers. Once a track has been rebuilt with a thin copper wire, a 6mm polyimide tape can securely fix and electrically isolate the wire from the rest of the circuit or metal shielding, avoiding any future short circuits. Its industrial-grade silicone adhesive leaves no sticky residue on the PCB, ensuring clean and professional work after each intervention.

Technical Specifications

• Material: Polyimide Film (Aerospace/Electronics Quality)
• Adhesive Type: High-Performance Silicone
• Width: 6 mm (Ultra-Precision Format)
• Length: 30 meters
• Thermal Resistance: 260°C stable / 300°C peak
• Properties: High dielectric, chemical-resistant, non-flammable
• Thickness: 0.05 mm

Workshop & Usage Advice

When applying under a microscope, use curved-tip tweezers to position the 6mm tape precisely on the area to be insulated. This format is particularly useful for masking digital microphones (often very sensitive to heat and solvents) before motherboard cleaning or soldering nearby. If working on processors, you can use this tape to hold protective aluminum sheets in place, creating an extremely effective multilayer thermal barrier.
