SUGON T3602 Dual Channel Micro-Soldering Station - 2 Seconds Precision

Description

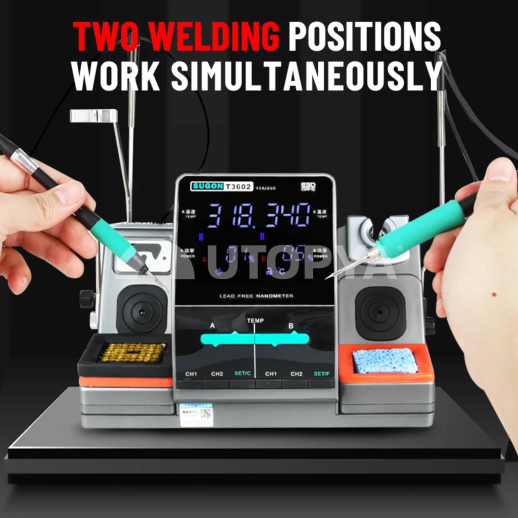

The SUGON T3602 stands out as an essential solution for electronic repair workshops requiring maximum versatility. With dual independent channels, this station allows the technician to simultaneously use two different handles (C210 and C115), eliminating the need to change tips between two micro-soldering steps. Whether you are working on reconstructing microscopic traces or cleaning pads under integrated circuits, the T3602 offers exceptional thermal stability and 120W power to meet the challenges of the densest motherboards.

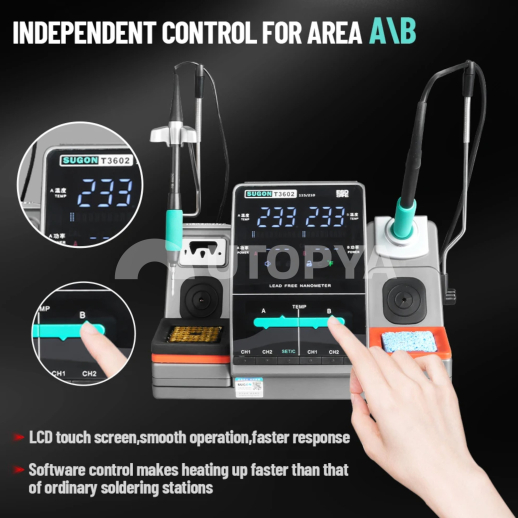

The high-performance heating system of the T3602 ensures a temperature rise in just 2 seconds, allowing for instant work resumption as soon as the iron is picked up. Each channel is equipped with three programmable memory buttons to store your favorite settings, while the digital screen provides precise real-time power consumption readings. Its ergonomic design includes smart iron holders with automatic standby, significantly extending the longevity of your high-precision tips while reducing the electrical consumption of your workstation.

Technical Specifications

• Reference: SUGON T3602 Double Channel Workstation
• Rated Power: 120W
• System: Dual Independent Channel with Separate Control
• Handles Included: Compatible with C115 / C210 series
• Heating Time: 2 seconds
• Temperature Range: 100°C - 450°C
• Functions: 3 memories per channel, automatic standby, digital calibration

Workshop & Usage Advice

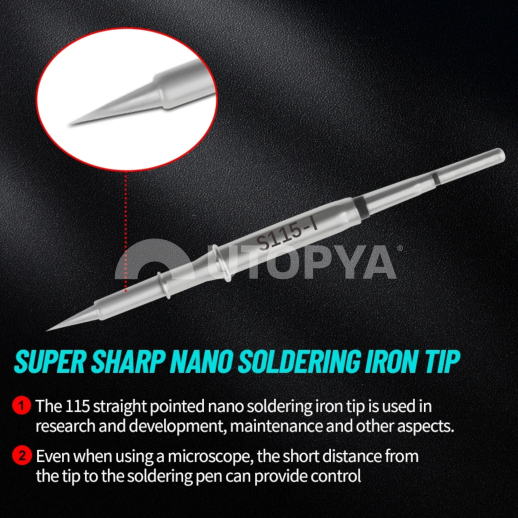

The SUGON T3602 is particularly effective for technicians performing diagnostic and serial repair tasks. To maximize your productivity, dedicate one channel to a "knife" tip C210 (for resin and solder cleaning) and the second channel to an ultra-fine tip C115 (for jumpers). Be sure to use high-quality tips to ensure the accuracy of the thermal sensor. With its 120W power, this station can also handle larger heat transfers on ground planes, provided the tip matches the contact surface.
