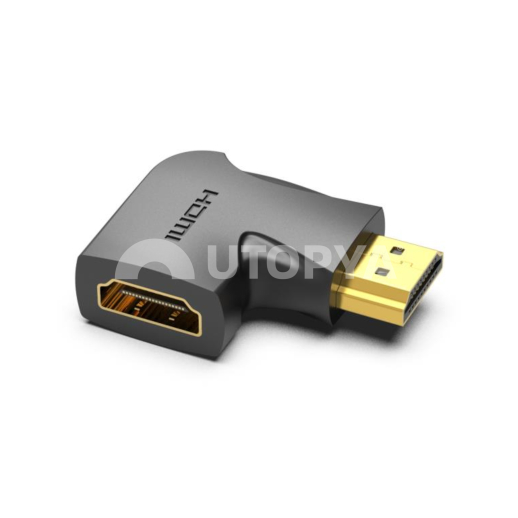

VENTION HDMI Male to Female Adapter 90° Vertical Flat

Description

The VENTION HDMI male to female 90° vertical flat adapter is designed to orient an HDMI cable at a right angle in the vertical axis, allowing for a parallel output to the connected device. This type of orientation is particularly useful in wall-mounted or recessed installations where depth is limited. Compact and discreet, it prevents cable bends and reduces mechanical stress on HDMI ports. Compatible with HDMI 2.0 standard, it supports resolutions up to 4K @ 60 Hz as well as HDR, Deep Color 48 bits, ARC, CEC, and 3D features. Its gold-plated connectors and sturdy ABS housing ensure a stable and durable connection, even in intensive or professional use.

Technical Specifications

• Connector Type: HDMI Type A male to HDMI Type A female, 90° vertical flat angle
• HDMI Standard: HDMI 2.0
• Maximum Resolution: 3840 x 2160 @ 60 Hz (4K UHD)
• Transmission Rate: up to 18 Gbps
• Compatibility: HDR10, 3D, Deep Color 48 bits, ARC, CEC
• Connectors: gold-plated for optimal conductivity and improved oxidation resistance
• Housing Material: high-density ABS
• Orientation: vertical downward or upward depending on insertion direction
• Color: black

Benefits

• Allows for a 90° vertical orientation change in tight space installations
• Protects HDMI ports against excessive stress and cable bends
• Full transmission of UHD 4K signals with support for advanced HDMI functions
• Gold-plated connectors ensuring reliability and durability
• Ultra-compact format compatible with wall-mounted or recessed environments

Recommended Applications

• Connection of wall-mounted TVs or screens with vertical HDMI access
• Optimization of wiring in audiovisual bays or racks with depth constraints
• Prevention of mechanical wear on HDMI ports in fixed equipment
• Orientation adaptation in compact professional or home installations
