VENTION HDMI to RCA Metal Converter

Description

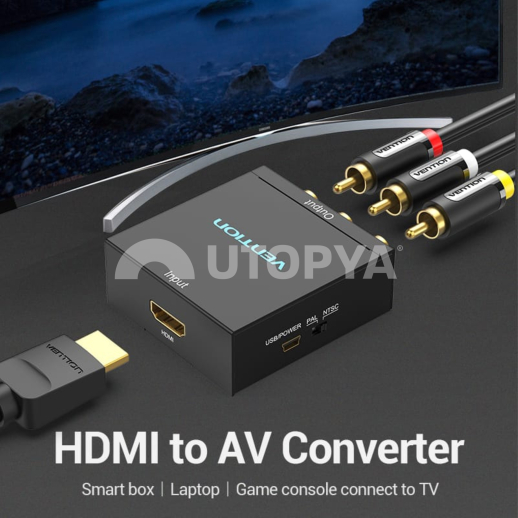

The VENTION HDMI to RCA converter in a metal case allows you to connect an HDMI source (computer, console, media player) to an analog display device with RCA inputs (CRT TV, analog monitor, VCR, etc.). It actively converts the digital HDMI signal into composite video (CVBS) accompanied by stereo analog audio (red and white). Designed for maximum compatibility with older equipment, this converter supports input resolutions up to 1080p and converts them to 480i/576i signal according to the selected PAL or NTSC standard. Its metal case ensures excellent heat dissipation and enhanced durability, even during extended use. Power via micro-USB port is required to ensure stable operation of the device.

Technical Specifications

• Input: HDMI Type A (male or female depending on model)

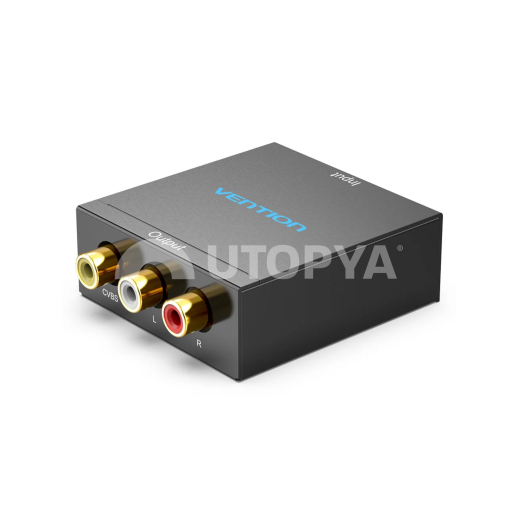

• Output: RCA female (yellow composite video + red/white audio)
• Supported Input Resolution: 480p, 720p, 1080p @ 60 Hz
• Video Output: composite CVBS (480i/576i)
• PAL/NTSC Selector: built-in (manual)
• Case Material: metal alloy for better heat dissipation
• Power: micro-USB 5V (cable generally included)
• Compatibility: HDMI players, decoders, consoles, PCs to RCA analog TVs
• Compact Dimensions: suitable for discreet integration
• Color: metallic grey

Advantages

• Allows connection of modern HDMI sources to RCA analog screens
• Metal case offering robustness and better heat dissipation
• PAL/NTSC compatibility for adaptation to regional standards
• Stable active conversion with dedicated power via micro-USB
• Ideal solution for backward compatibility with old audiovisual equipment

Recommended Applications

• Connecting an HDMI player to a CRT TV or RCA VCR
• Use in technical environments requiring conversion to analog
• Retrofitting old audiovisual equipment in professional or museum contexts
• Testing or demonstrations on screens with only RCA inputs
