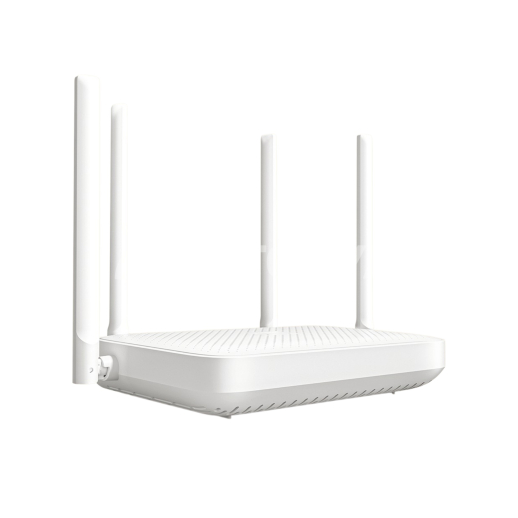

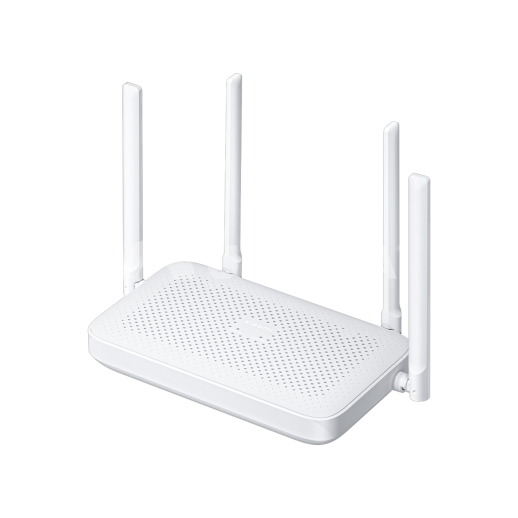

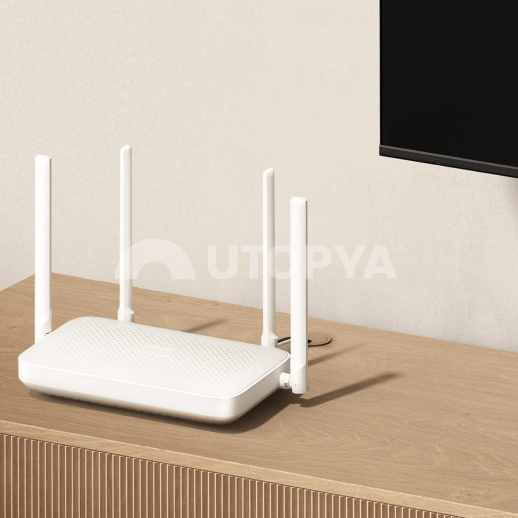

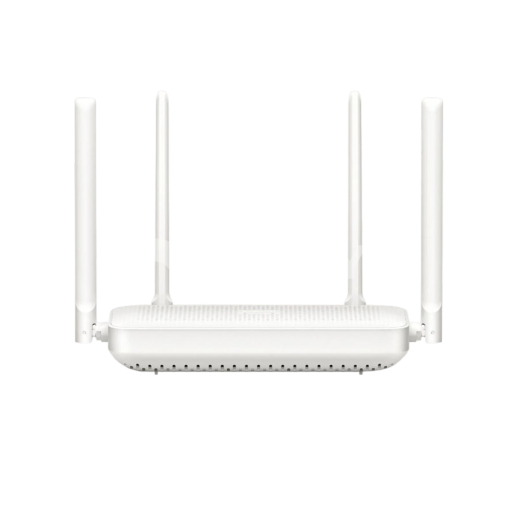

Xiaomi Router AX1500 | Dual-Band Wi-Fi 6 & Mesh Router

Description

The Xiaomi Router AX1500 democratises access to Wi-Fi 6 (802.11ax) technology, offering faster and more stable wireless connectivity than traditional routers. Designed to meet the needs of modern homes, it delivers a combined speed of up to 1500 Mbps. The integration of OFDMA technology is a major technical advantage: it allows data to be transmitted to multiple terminals in a single transmission, drastically reducing latency and interference in environments where many devices are connected simultaneously.

In terms of wired infrastructure, the AX1500 features four auto-adaptive (Auto-sensing) Gigabit Ethernet ports. This feature simplifies installation by allowing the internet cable to be plugged into any port, with the internal software automatically configuring the WAN port. Network coverage is provided by four high-gain antennas, optimised by beamforming algorithms that concentrate the signal towards active devices for better penetration through domestic walls.

The router supports Xiaomi Mesh technology, allowing for the creation of a single, seamless network by linking multiple compatible nodes. This function ensures transparent roaming: the user moves from one room to another without disconnection. Fully configurable via the Mi Home/Xiaomi Home app, it also integrates the latest WPA3 security standard, protecting the local network against brute-force intrusion attempts.

Technical Specifications

• Wireless Technology: Dual-Band Wi-Fi 6 (802.11ax) 2.4GHz / 5GHz
• Maximum Speed: 1500 Mbps (1201 Mbps @ 5GHz + 300 Mbps @ 2.4GHz)
• Connectivity: 4 x 10/100/1000 Mbps Ethernet Ports (Auto WAN/LAN)
• Antennas: 4 x High-performance external omnidirectional antennas
• Features: Xiaomi Mesh, IPTV, BSS Colouring, WPA3, IPv6
• Capacity: Recommended for up to 64 simultaneous devices
• Dimensions: 247 x 143.5 x 178.7 mm

Workshop Advice & Usage

For quick setup, download the Xiaomi Home app and scan the code under the router; the WAN port auto-detection greatly simplifies installation for non-experts. To maximise Wi-Fi 6 performance, ensure you enable the "Smart Connect" function which merges the 2.4 GHz and 5 GHz bands under a single network name (SSID), allowing the router to choose the optimal frequency for each device. When deploying in Mesh mode, take care not to place the nodes too far apart to maintain a stable backhaul, which is essential for preserving Wi-Fi 6 speeds at the end of the chain.
