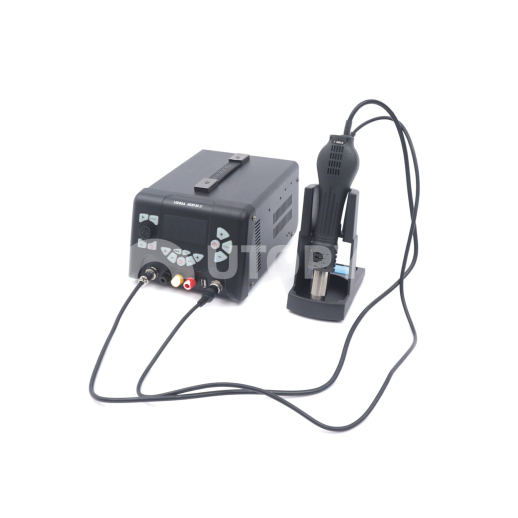

YIHUA 853D 5A II 3-in-1 Professional Station - Complete Workshop Solution

Description

The YIHUA 853D 5A II is the ultimate space-saving solution for electronic repair workshops requiring versatility and performance. This 3-in-1 system combines a soldering station, a high-power hot air station, and a 30V 5A stabilized power supply in a single sturdy chassis. With its built-in PID processor, the station monitors and corrects temperatures in real time every millisecond, ensuring essential thermal stability for micro-soldering work on smartphones, tablets, and laptops.

The integrated 5A laboratory power supply is a major asset for diagnostics, allowing current injection to detect short circuits or power devices under test via dedicated outputs. The hot air section, with a power of 720W, enables quick removal of SMD components while providing maximum safety with its automatic standby mode. Whether you specialize in printed circuit board repair or electrical fault diagnosis, the 853D 5A II offers all the necessary tools under a centralized and intuitive interface.

Technical Specifications

• Reference: YIHUA 853D 5A II
• Stabilized Power Supply: 0-30V / 0-5A with LED display
• Hot Air Station: 720W with adjustable air flow (max 120L/min)
• Soldering Station: Soldering iron with temperature range 200°C - 480°C
• Thermal Control: Programmable PID technology
• Additional Functions: 5V USB port, RF signal test, Integrated voltmeter
• Safety: Automatic standby mode and forced cooling of hot air

Workshop Advice & Usage

The YIHUA 853D 5A II is the central tool for your diagnostics. Use the 5A power supply to identify components that heat abnormally on a motherboard by limiting the current. For the hot air section, prefer the "Automatic" mode that cuts off the heat as soon as the handle is released, ensuring the safety of your workstation. Finally, take advantage of the integrated USB port to charge your test devices or check the basic consumption of a smartphone. Remember to periodically calibrate the iron temperature via the digital interface to ensure absolute precision during your most delicate soldering tasks.
